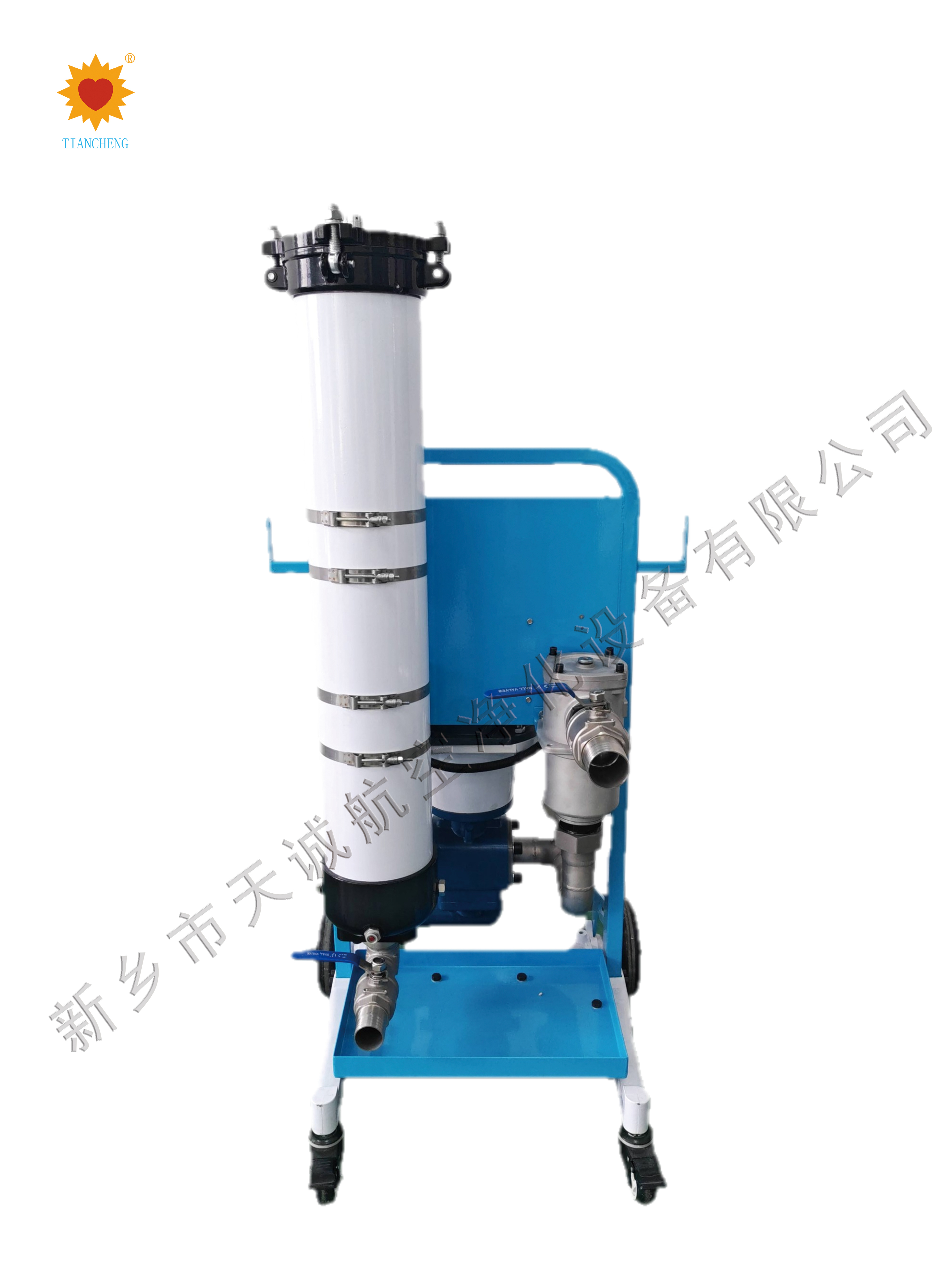

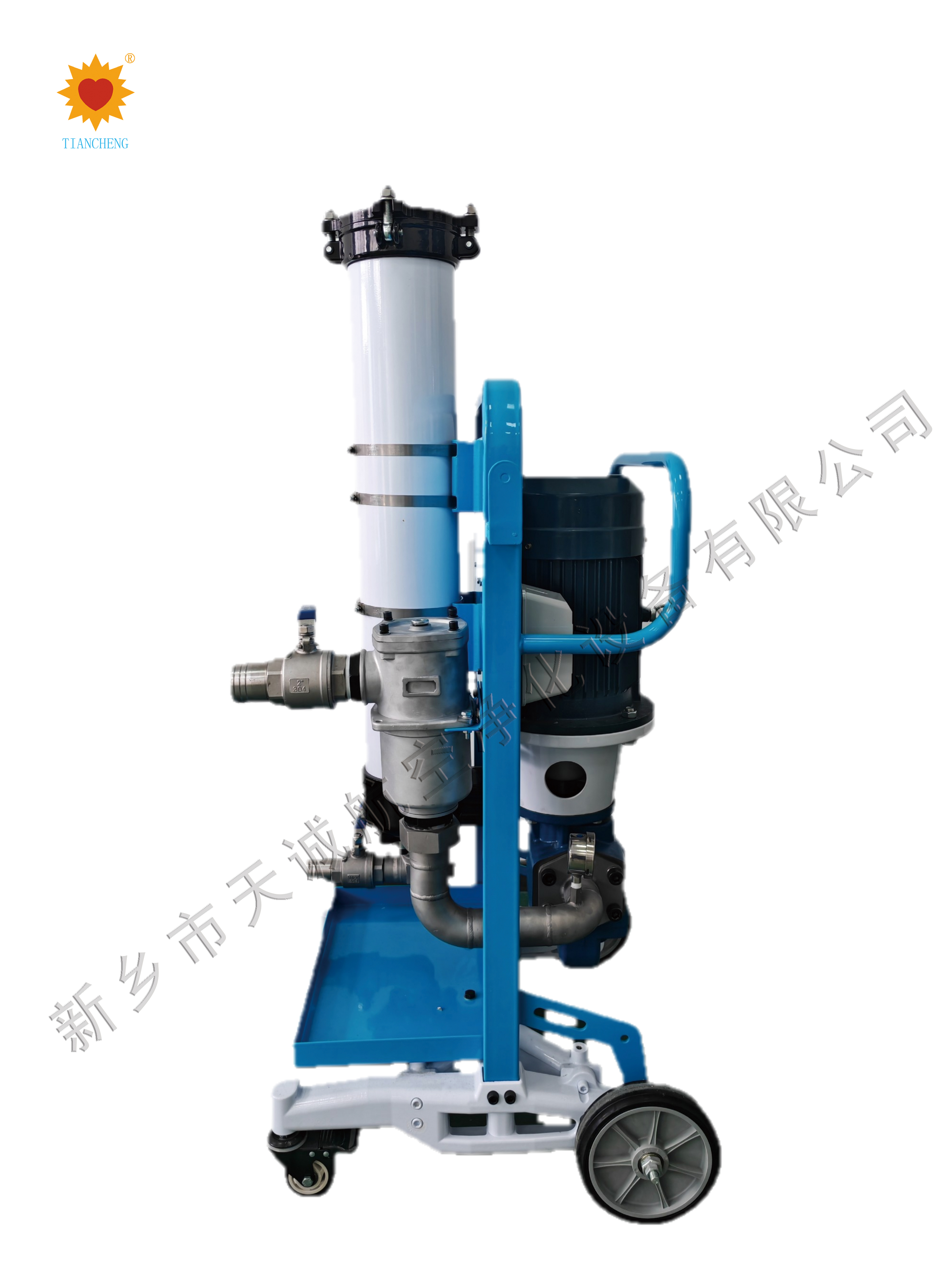

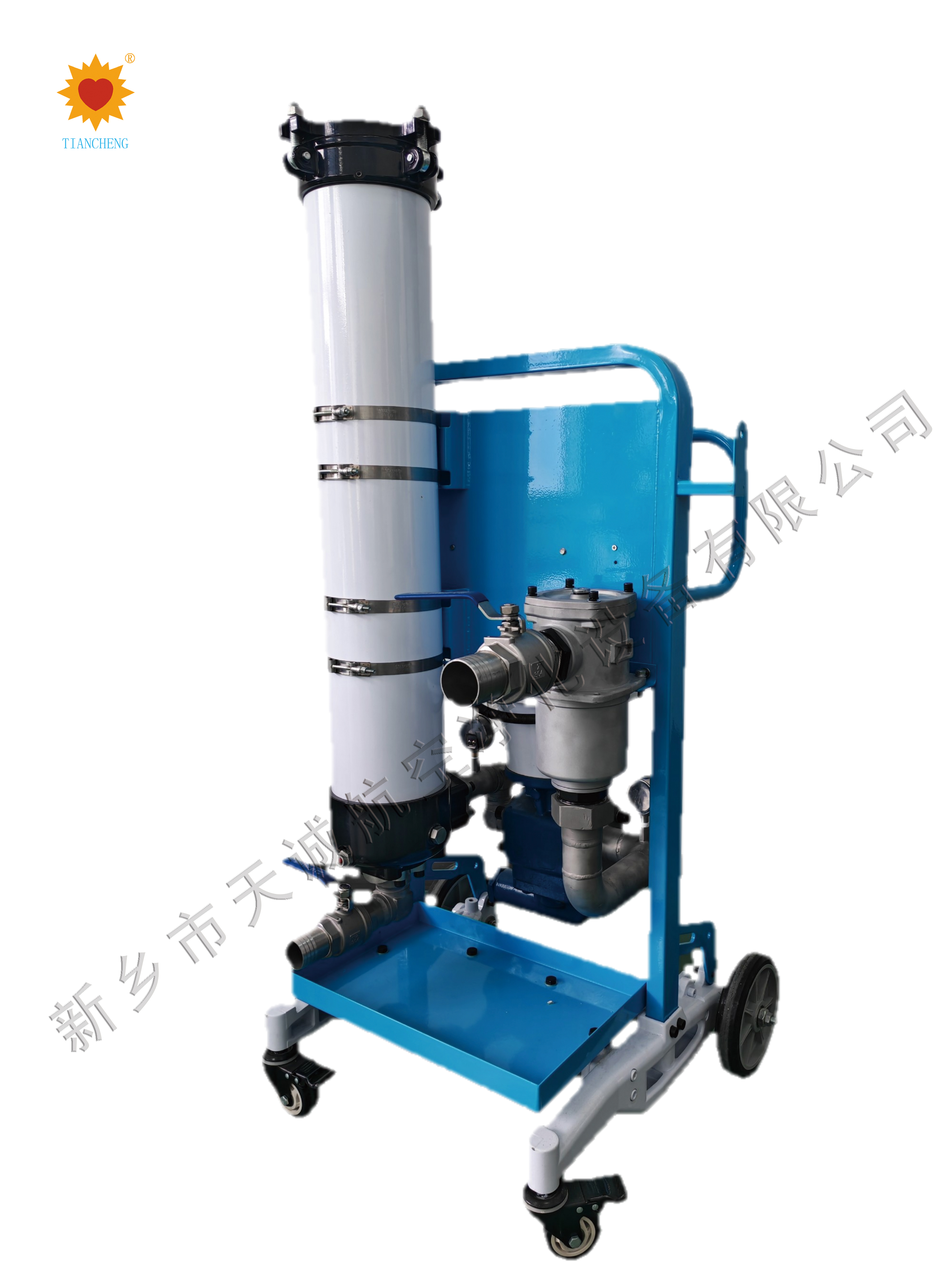

The large-flow purifier is a filtering device designed for rapid oil purification in emergency conditions or for purifying ultra-large oil tanks. The maximum working flow rate can reach 200L/min.
The large-flow purifier equipped with a large- flow gear pump and a two-stage filter (multi-stage filter is optional). It has the characteristics of low noise, strong suction and stable operation.
This equipment is safe and reliable, and is equipped with overflow protector, relay protector and filter differential pressure meter to ensure that the equipment can operate safely and effectively for a long time.
The filters use internationally renowned brand filter materials and can purify oil to NAS6 level in 4-6 hours under normal working conditions.
We can customize the filtration accuracy, pump power, flow rate, interface size and power plug according to actual needs.
|
|
|
流量Flow rate | 200L/min |
工作温度Operating temperature | 5~80℃ |
工作压力Operating pressure | 0~16 bar |
I 级过滤精度Level I filtration rating | 100μm |
II 级过滤精度Level II filtration rating | 1~40μm |
滤后油液洁净度等级(最高) Filtered oil cleanliness class(Max) | NAS 4 |
油液净化效率 Filtration Efficiency | 2-4小时（hours）：NAS 12→NAS 9 4-6小时（hours）：NAS 9→NAS 6 6-8小时（hours）：NAS 6→NAS 4 |
滤材材料Filter element material | 玻纤,不锈钢网fiberglass, stainless steel mesh |
过滤器壳体材料Housing material | 铝、碳钢或不锈钢aluminum,carbon steel or stainless steel |
接口类型Type of connect | 法兰或螺纹flange or thread |
适用粘度Viscosity | 10~150Cst |
电压Voltage | AC380V/AC230V/AC110V |
净重(约) Net weight (Approximately) | 150kg |
